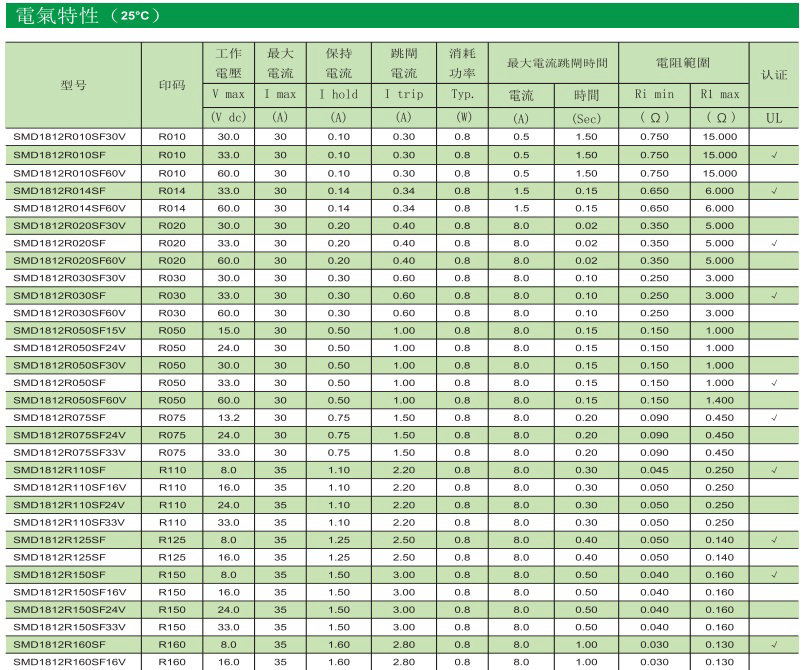

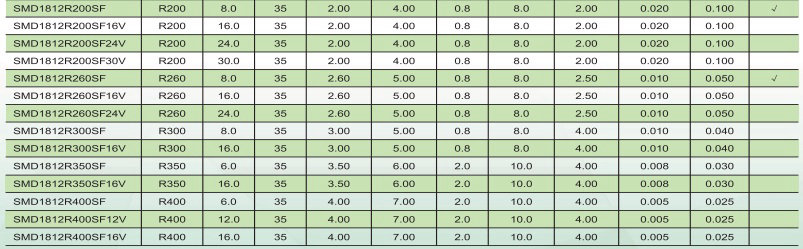

电气特性（25℃）
型号 | 印码 | 工作電压 | 最大电流 | 保持电流 | 跳闸电流 | 消耗功率 | 最大电流跳闸时间 | 电阻范围 | 认证 | |||
V max | I max | I hold | I trip | Pd | 电流 | 时间 | Ri min | R1 max | UL | |||
(V dc) | (A) | (A) | (A) | (W) | (A) | (Sec) | (Ω) | (Ω) | ||||
SMD1812R010SF30V | R010 | 30.0 | 30 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 | ||
SMD1812R010SF | R010 | 33.0 | 30 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 | √ | |
SMD1812R010SF60V | R010 | 60.0 | 30 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 | ||
SMD1812R010SF72V | R010 | 72.0 | 30 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 | ||
SMD1812R010SF90V | R010 | 90.0 | 30 | 0.10 | 0.30 | 0.8 | 0.5 | 1.50 | 0.750 | 15.000 | ||
SMD1812R014SF | R014 | 33.0 | 30 | 0.14 | 0.34 | 0.8 | 1.5 | 0.15 | 0.650 | 6.000 | √ | |
SMD1812R014SF60V | R014 | 60.0 | 30 | 0.14 | 0.34 | 0.8 | 1.5 | 0.15 | 0.650 | 6.000 | ||
SMD1812R014SF72V | R014 | 72.0 | 30 | 0.14 | 0.34 | 0.8 | 1.5 | 0.15 | 0.650 | 6.000 | ||
SMD1812R020SF30V | R020 | 30.0 | 30 | 0.20 | 0.40 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 | ||
SMD1812R020SF | R020 | 33.0 | 30 | 0.20 | 0.40 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 | √ | |
SMD1812R020SF60V | R020 | 60.0 | 30 | 0.20 | 0.40 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 | ||
SMD1812R020SF72V | R020 | 72.0 | 30 | 0.20 | 0.40 | 0.8 | 8.0 | 0.02 | 0.350 | 5.000 | ||
SMD1812R030SF30V | R030 | 30.0 | 30 | 0.30 | 0.60 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 | ||
SMD1812R030SF | R030 | 33.0 | 30 | 0.30 | 0.60 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 | √ | |
SMD1812R030SF60V | R030 | 60.0 | 30 | 0.30 | 0.60 | 0.8 | 8.0 | 0.10 | 0.250 | 3.000 | ||
SMD1812R050SF15V | R050 | 15.0 | 30 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.150 | 1.000 | ||
SMD1812R050SF24V | R050 | 24.0 | 30 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.150 | 1.000 | ||
SMD1812R050SF30V | R050 | 30.0 | 30 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.150 | 1.000 | ||
SMD1812R050SF | R050 | 33.0 | 30 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.150 | 1.000 | √ | |
SMD1812R050SF60V | R050 | 60.0 | 30 | 0.50 | 1.00 | 0.8 | 8.0 | 0.15 | 0.150 | 1.400 | ||
SMD1812R075SF | R075 | 13.2 | 30 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.090 | 0.450 | √ | |
SMD1812R075SF24V | R075 | 24.0 | 30 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.090 | 0.450 | ||
SMD1812R075SF33V | R075 | 33.0 | 30 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.090 | 0.450 | ||
SMD1812R075SF42V | R075 | 42.0 | 30 | 0.75 | 1.50 | 0.8 | 8.0 | 0.20 | 0.090 | 0.450 | ||
SMD1812R110SF | R110 | 8.0 | 35 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.045 | 0.250 | √ | |
SMD1812R110SF16V | R110 | 16.0 | 35 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.050 | 0.250 | ||
SMD1812R110SF24V | R110 | 24.0 | 35 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.050 | 0.250 | ||
SMD1812R110SF33V | R110 | 33.0 | 35 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.050 | 0.250 | ||
SMD1812R110SF40V | R110 | 40.0 | 35 | 1.10 | 2.20 | 0.8 | 8.0 | 0.30 | 0.050 | 0.250 | ||
SMD1812R125SF | R125 | 8.0 | 35 | 1.25 | 2.50 | 0.8 | 8.0 | 0.40 | 0.050 | 0.140 | √ | |
SMD1812R125SF16V | R125 | 16.0 | 35 | 1.25 | 2.50 | 0.8 | 8.0 | 0.40 | 0.050 | 0.140 | ||
SMD1812R125SF24V | R125 | 24.0 | 35 | 1.25 | 2.50 | 0.8 | 8.0 | 0.40 | 0.050 | 0.140 | ||
SMD1812R125SF33V | R125 | 33.0 | 35 | 1.25 | 2.50 | 0.8 | 8.0 | 0.40 | 0.050 | 0.140 | ||
SMD1812R150SF | R150 | 8.0 | 35 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 | √ | |
SMD1812R150SF16V | R150 | 16.0 | 35 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 | ||
SMD1812R150SF24V | R150 | 24.0 | 35 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 | ||
SMD1812R150SF33V | R150 | 33.0 | 35 | 1.50 | 3.00 | 0.8 | 8.0 | 0.50 | 0.040 | 0.160 | ||
SMD1812R160SF | R160 | 8.0 | 35 | 1.60 | 2.80 | 0.8 | 8.0 | 1.00 | 0.030 | 0.130 | √ | |
SMD1812R160SF16V | R160 | 16.0 | 35 | 1.60 | 2.80 | 0.8 | 8.0 | 1.00 | 0.030 | 0.130 | ||
SMD1812R160SF24V | R160 | 24.0 | 35 | 1.60 | 2.80 | 0.8 | 8.0 | 1.00 | 0.030 | 0.130 | ||
SMD1812R160SF33V | R160 | 33.0 | 35 | 1.60 | 2.80 | 0.8 | 8.0 | 1.00 | 0.030 | 0.130 | ||
SMD1812R200SF | R200 | 8.0 | 35 | 2.00 | 4.00 | 0.8 | 8.0 | 2.00 | 0.020 | 0.100 | √ | |
SMD1812R200SF16V | R200 | 16.0 | 35 | 2.00 | 4.00 | 0.8 | 8.0 | 2.00 | 0.020 | 0.100 | ||
SMD1812R200SF24V | R200 | 24.0 | 35 | 2.00 | 4.00 | 0.8 | 8.0 | 2.00 | 0.020 | 0.100 | ||
SMD1812R200SF30V | R200 | 30.0 | 35 | 2.00 | 4.00 | 0.8 | 8.0 | 2.00 | 0.020 | 0.100 | ||
SMD1812R260SF | R260 | 8.0 | 35 | 2.60 | 5.00 | 0.8 | 8.0 | 2.50 | 0.010 | 0.050 | √ | |
SMD1812R260SF16V | R260 | 16.0 | 35 | 2.60 | 5.00 | 0.8 | 8.0 | 2.50 | 0.010 | 0.050 | ||
SMD1812R260SF24V | R260 | 24.0 | 35 | 2.60 | 5.00 | 0.8 | 8.0 | 2.50 | 0.010 | 0.050 | ||
SMD1812R300SF | R300 | 8.0 | 35 | 3.00 | 5.00 | 0.8 | 8.0 | 4.00 | 0.010 | 0.040 | ||
SMD1812R300SF16V | R300 | 16.0 | 35 | 3.00 | 5.00 | 0.8 | 8.0 | 4.00 | 0.010 | 0.040 | ||
SMD1812R350SF | R350 | 6.0 | 35 | 3.50 | 6.00 | 2.0 | 10.0 | 4.00 | 0.008 | 0.035 | ||
SMD1812R350SF16V | R350 | 16.0 | 35 | 3.50 | 6.00 | 2.0 | 10.0 | 4.00 | 0.008 | 0.035 | ||
SMD1812R400SF | R400 | 6.0 | 35 | 4.00 | 7.00 | 2.0 | 10.0 | 4.00 | 0.005 | 0.030 | ||
SMD1812R400SF12V | R400 | 12.0 | 35 | 4.00 | 7.00 | 2.0 | 10.0 | 4.00 | 0.005 | 0.030 | ||
SMD1812R400SF16V | R400 | 16.0 | 35 | 4.00 | 7.00 | 2.0 | 10.0 | 4.00 | 0.005 | 0.030 | ||

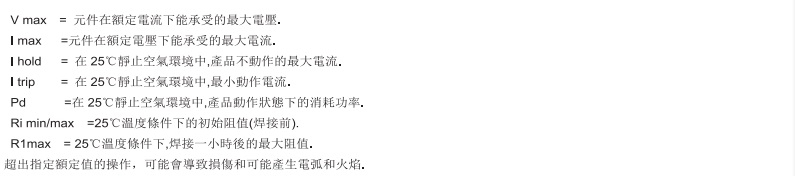

V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流.
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
超出指定額定值的操作，可能會導致損傷和可能產生電弧和火焰.
