一次性贴片2410（慢断）

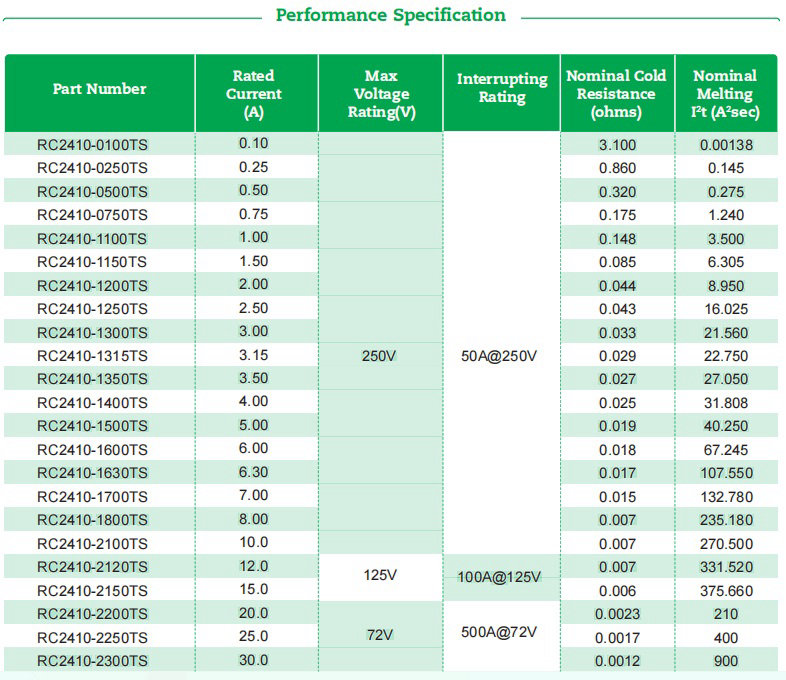

Performance Specification
Part Number | RatedCurrent(A) | MaxVoltage Rating(V) | InterruptingRating | Nominal ColdResistance(ohms) | NominalMelting I2t (A2sec) |
RC2410-0100TS | 0.10 | 3.100 | 0.00138 | ||
RC2410-0250TS | 0.25 | 0.860 | 0.145 | ||
RC2410-0500TS | 0.50 | 0.320 | 0.275 | ||
RC2410-0750TS | 0.75 | 0.175 | 1.240 | ||
RC2410-1100TS | 1.00 | 0.148 | 3.500 | ||
RC2410-1150TS | 1.50 | 0.085 | 6.305 | ||
RC2410-1200TS | 2.00 | 0.044 | 8.950 | ||
RC2410-1250TS | 2.50 | 0.043 | 16.025 | ||
RC2410-1300TS | 3.00 | 0.033 | 21.560 | ||
RC2410-1315TS | 3.15 | 250V | 50A@250V | 0.029 | 22.750 |
RC2410-1350TS | 3.50 | 0.027 | 27.050 | ||
RC2410-1400TS | 4.00 | 0.025 | 31.808 | ||
RC2410-1500TS | 5.00 | 0.019 | 40.250 | ||
RC2410-1600TS | 6.00 | 0.018 | 67.245 | ||
RC2410-1630TS | 6.30 | 0.017 | 107.550 | ||
RC2410-1700TS | 7.00 | 0.015 | 132.780 | ||
RC2410-1800TS | 8.00 | 0.007 | 235.180 | ||
RC2410-2100TS | 10.0 | 0.007 | 270.500 | ||
RC2410-2120TS | 12.0 | 125V | 100A@125V | 0.007 | 331.520 |
RC2410-2150TS | 15.0 | 0.006 | 375.660 | ||
RC2410-2200TS | 20.0 | 0.0023 | 210 | ||
RC2410-2250TS | 25.0 | 72V | 500A@72V | 0.0017 | 400 |
RC2410-2300TS | 30.0 | 0.0012 | 900 |
