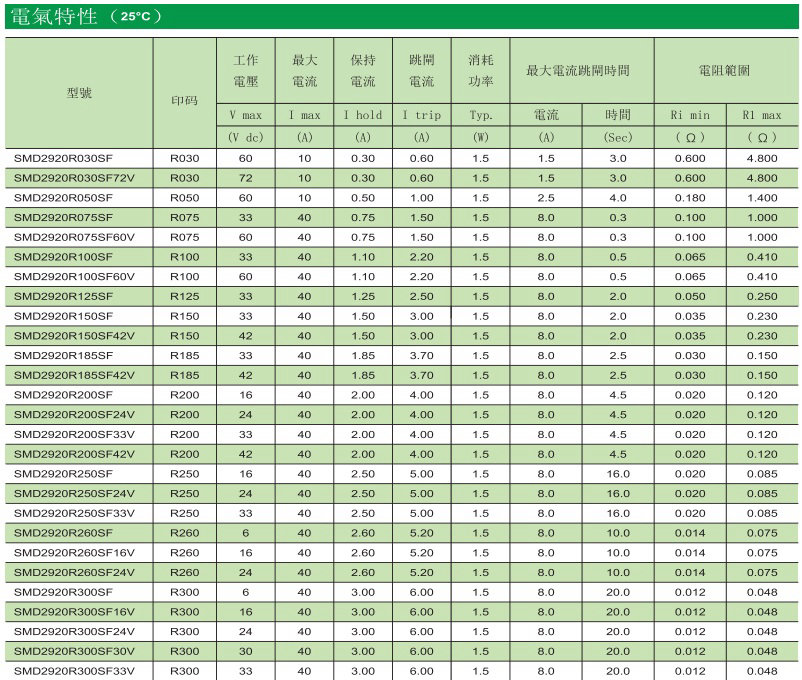

电气特性（25℃）
型号 | 印码 | 工作電压 | 最大电流 | 保持电流 | 跳闸电流 | 消耗功率 | 最大电流跳闸时间 | 电阻范围 | 认证 | |||
V max | I max | I hold | I trip | Pd | 电流 | 时间 | Ri min | R1 max | UL | |||
(V dc) | (A) | (A) | (A) | (W) | (A) | (Sec) | (Ω) | (Ω) | ||||
SMD2920R030SF | R030 | 60 | 10 | 0.30 | 0.60 | 1.5 | 1.5 | 3.0 | 0.600 | 4.800 | ||
SMD2920R030SF72V | R030 | 72 | 10 | 0.30 | 0.60 | 1.5 | 1.5 | 3.0 | 0.600 | 4.800 | ||
SMD2920R050SF | R050 | 60 | 10 | 0.50 | 1.00 | 1.5 | 2.5 | 4.0 | 0.180 | 1.400 | ||
SMD2920R050SF72V | R050 | 72 | 10 | 0.50 | 1.00 | 1.5 | 2.5 | 4.0 | 0.180 | 1.400 | ||
SMD2920R075SF | R075 | 33 | 40 | 0.75 | 1.50 | 1.5 | 8.0 | 0.3 | 0.100 | 1.000 | ||
SMD2920R075SF60V | R075 | 60 | 40 | 0.75 | 1.50 | 1.5 | 8.0 | 0.3 | 0.100 | 1.000 | ||
SMD2920R075SF72V | R075 | 72 | 40 | 0.75 | 1.50 | 1.5 | 8.0 | 0.3 | 0.100 | 1.000 | ||
SMD2920R100SF | R100 | 33 | 40 | 1.10 | 2.20 | 1.5 | 8.0 | 0.5 | 0.065 | 0.410 | ||
SMD2920R100SF60V | R100 | 60 | 40 | 1.10 | 2.20 | 1.5 | 8.0 | 0.5 | 0.065 | 0.410 | ||
SMD2920R100SF72V | R100 | 72 | 40 | 1.10 | 2.20 | 1.5 | 8.0 | 0.5 | 0.065 | 0.410 | ||
SMD2920R125SF | R125 | 33 | 40 | 1.25 | 2.50 | 1.5 | 8.0 | 2.0 | 0.050 | 0.250 | ||
SMD2920R125SF42V | R125 | 42 | 40 | 1.25 | 2.50 | 1.5 | 8.0 | 2.0 | 0.050 | 0.250 | ||
SMD2920R125SF60V | R125 | 42 | 40 | 1.25 | 2.50 | 1.5 | 8.0 | 2.0 | 0.050 | 0.250 | ||
SMD2920R150SF | R150 | 33 | 40 | 1.50 | 3.00 | 1.5 | 8.0 | 2.0 | 0.035 | 0.230 | ||
SMD2920R150SF42V | R150 | 42 | 40 | 1.50 | 3.00 | 1.5 | 8.0 | 2.0 | 0.035 | 0.230 | ||
SMD2920R150SF60V | R150 | 60 | 40 | 1.50 | 3.00 | 1.5 | 8.0 | 2.0 | 0.035 | 0.230 | ||
SMD2920R185SF | R185 | 33 | 40 | 1.85 | 3.70 | 1.5 | 8.0 | 2.5 | 0.030 | 0.150 | ||
SMD2920R185SF42V | R185 | 42 | 40 | 1.85 | 3.70 | 1.5 | 8.0 | 2.5 | 0.030 | 0.150 | ||
SMD2920R185SF60V | R185 | 60 | 40 | 1.85 | 3.70 | 1.5 | 8.0 | 2.5 | 0.030 | 0.150 | ||
SMD2920R200SF | R200 | 16 | 40 | 2.00 | 4.00 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 | ||
SMD2920R200SF24V | R200 | 24 | 40 | 2.00 | 4.00 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 | ||
SMD2920R200SF33V | R200 | 33 | 40 | 2.00 | 4.00 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 | ||
SMD2920R200SF42V | R200 | 42 | 40 | 2.00 | 4.00 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 | ||
SMD2920R200SF60V | R200 | 60 | 40 | 2.00 | 4.00 | 1.5 | 8.0 | 4.5 | 0.020 | 0.120 | ||
SMD2920R250SF | R250 | 16 | 40 | 2.50 | 5.00 | 1.5 | 8.0 | 16.0 | 0.020 | 0.085 | ||
SMD2920R250SF24V | R250 | 24 | 40 | 2.50 | 5.00 | 1.5 | 8.0 | 16.0 | 0.020 | 0.085 | ||
SMD2920R250SF33V | R250 | 33 | 40 | 2.50 | 5.00 | 1.5 | 8.0 | 16.0 | 0.020 | 0.085 | ||
SMD2920R260SF | R260 | 6 | 40 | 2.60 | 5.20 | 1.5 | 8.0 | 10.0 | 0.014 | 0.075 | ||
SMD2920R260SF16V | R260 | 16 | 40 | 2.60 | 5.20 | 1.5 | 8.0 | 10.0 | 0.014 | 0.075 | ||
SMD2920R260SF24V | R260 | 24 | 40 | 2.60 | 5.20 | 1.5 | 8.0 | 10.0 | 0.014 | 0.075 | ||
SMD2920R260SF33V | R260 | 33 | 40 | 2.60 | 5.20 | 1.5 | 8.0 | 10.0 | 0.014 | 0.075 | ||
SMD2920R300SF | R300 | 6 | 40 | 3.00 | 6.00 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 | ||
SMD2920R300SF16V | R300 | 16 | 40 | 3.00 | 6.00 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 | ||
SMD2920R300SF24V | R300 | 24 | 40 | 3.00 | 6.00 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 | ||
SMD2920R300SF30V | R300 | 30 | 40 | 3.00 | 6.00 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 | ||
SMD2920R300SF33V | R300 | 33 | 40 | 3.00 | 6.00 | 1.5 | 8.0 | 20.0 | 0.012 | 0.048 | ||
SMD2920R400SF | R400 | 6 | 40 | 4.00 | 8.00 | 1.5 | 20.0 | 4.0 | 0.006 | 0.030 | ||
SMD2920R400SF16V | R400 | 16 | 40 | 4.00 | 8.00 | 1.5 | 20.0 | 4.0 | 0.006 | 0.030 | ||
SMD2920R400SF24V | R400 | 24 | 40 | 4.00 | 8.00 | 1.5 | 20.0 | 4.0 | 0.006 | 0.030 | ||
SMD2920R500SF | R500 | 6 | 40 | 5.00 | 10.00 | 1.5 | 25.0 | 5.0 | 0.005 | 0.025 | ||
SMD2920R500SF12V | R500 | 12 | 40 | 5.00 | 10.00 | 1.5 | 25.0 | 5.0 | 0.005 | 0.025 | ||
SMD2920R500SF16V | R500 | 16 | 40 | 5.00 | 10.00 | 1.5 | 25.0 | 5.0 | 0.005 | 0.025 | ||
SMD2920R500SF24V | R500 | 24 | 40 | 5.00 | 10.00 | 1.5 | 25.0 | 5.0 | 0.005 | 0.025 | ||
SMD2920R600SF | R600 | 6 | 40 | 6.00 | 12.00 | 1.5 | 25.0 | 6.0 | 0.004 | 0.020 | ||
SMD2920R600SF12V | R600 | 12 | 40 | 6.00 | 12.00 | 1.5 | 25.0 | 6.0 | 0.004 | 0.020 | ||
SMD2920R600SF16V | R600 | 16 | 40 | 6.00 | 12.00 | 1.5 | 25.0 | 6.0 | 0.004 | 0.020 | ||
SMD2920R600SF24V | R600 | 24 | 40 | 6.00 | 12.00 | 1.5 | 25.0 | 6.0 | 0.004 | 0.020 | ||
SMD2920R700SF | R700 | 6 | 40 | 7.00 | 14.00 | 1.5 | 25.0 | 6.0 | 0.0025 | 0.014 | ||
SMD2920R700SF12V | R700 | 12 | 40 | 7.00 | 14.00 | 1.5 | 25.0 | 6.0 | 0.0025 | 0.014 | ||
SMD2920R700SF16V | R700 | 16 | 40 | 7.00 | 14.00 | 1.5 | 25.0 | 6.0 | 0.0025 | 0.014 | ||
SMD2920R700SF24V | R700 | 24 | 40 | 7.00 | 14.00 | 1.5 | 25.0 | 6.0 | 0.0025 | 0.014 | ||

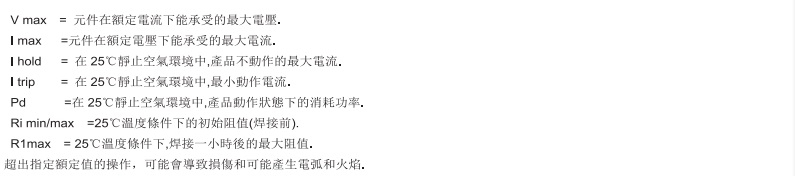

V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流.
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
超出指定額定值的操作，可能會導致損傷和可能產生電弧和火焰.
