2018 系列

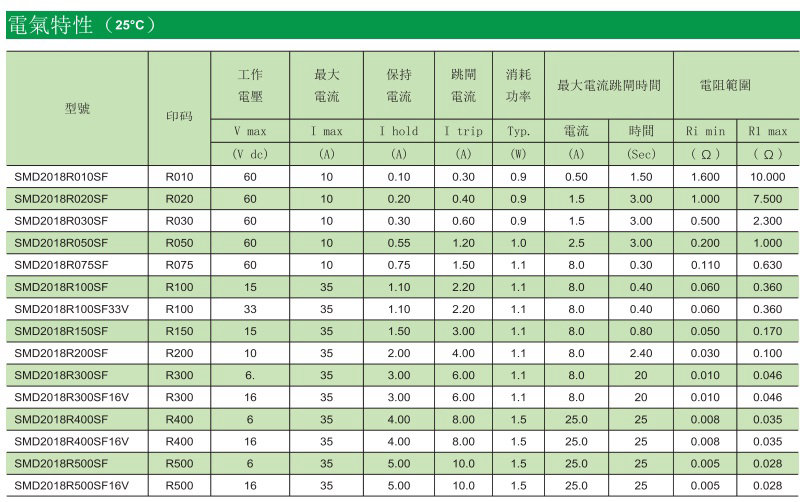

电气特性（25℃）
型号 | 印码 | 工作電压 | 最大电流 | 保持电流 | 跳闸电流 | 消耗功率 | 最大电流跳闸时间 | 电阻范围 | 认证 | |||
V max | I max | I hold | I trip | Pd | 电流 | 时间 | Ri min | R1 max | UL | |||
(V dc) | (A) | (A) | (A) | (W) | (A) | (Sec) | (Ω) | (Ω) | ||||
SMD2018R010SF | R010 | 60 | 10 | 0.10 | 0.30 | 0.9 | 0.50 | 1.50 | 1.600 | 10.000 | ||
SMD2018R020SF | R020 | 60 | 10 | 0.20 | 0.40 | 0.9 | 1.5 | 3.00 | 1.000 | 7.500 | ||
SMD2018R030SF | R030 | 60 | 10 | 0.30 | 0.60 | 0.9 | 1.5 | 3.00 | 0.500 | 3.000 | ||
SMD2018R030SF90V | R030 | 90 | 10 | 0.30 | 0.60 | 0.9 | 1.5 | 3.00 | 0.500 | 3.000 | ||
SMD2018R050SF | R050 | 60 | 10 | 0.55 | 1.20 | 1.0 | 2.5 | 3.00 | 0.200 | 1.000 | ||
SMD2018R075SF | R075 | 60 | 10 | 0.75 | 1.50 | 1.1 | 8.0 | 0.30 | 0.110 | 0.630 | ||
SMD2018R100SF | R100 | 15 | 35 | 1.10 | 2.20 | 1.1 | 8.0 | 0.40 | 0.060 | 0.360 | ||
SMD2018R100SF33V | R100 | 33 | 35 | 1.10 | 2.20 | 1.1 | 8.0 | 0.40 | 0.060 | 0.360 | ||
SMD2018R150SF | R150 | 15 | 35 | 1.50 | 3.00 | 1.1 | 8.0 | 0.80 | 0.050 | 0.170 | ||
SMD2018R150SF33V | R150 | 33 | 35 | 1.50 | 3.00 | 1.1 | 8.0 | 0.80 | 0.050 | 0.170 | ||
SMD2018R200SF | R200 | 10 | 35 | 2.00 | 4.00 | 1.1 | 8.0 | 2.40 | 0.030 | 0.100 | ||
SMD2018R260SF | R260 | 6 | 35 | 2.60 | 5.00 | 1.1 | 8.0 | 20 | 0.010 | 0.070 | ||
SMD2018R300SF | R300 | 6 | 35 | 3.00 | 6.00 | 1.1 | 8.0 | 20 | 0.010 | 0.046 | ||
SMD2018R300SF16V | R300 | 16 | 35 | 3.00 | 6.00 | 1.1 | 8.0 | 20 | 0.010 | 0.046 | ||
SMD2018R400SF | R400 | 6 | 35 | 4.00 | 8.00 | 1.1 | 25.0 | 5 | 0.005 | 0.035 | ||
SMD2018R400SF16V | R400 | 16 | 35 | 4.00 | 8.00 | 1.1 | 25.0 | 5 | 0.005 | 0.035 | ||
SMD2018R500SF | R500 | 6 | 35 | 5.00 | 10.0 | 1.1 | 25.0 | 5 | 0.005 | 0.028 | ||
SMD2018R500SF16V | R500 | 16 | 35 | 5.00 | 10.0 | 1.1 | 25.0 | 5.0 | 0.005 | 0.028 | ||

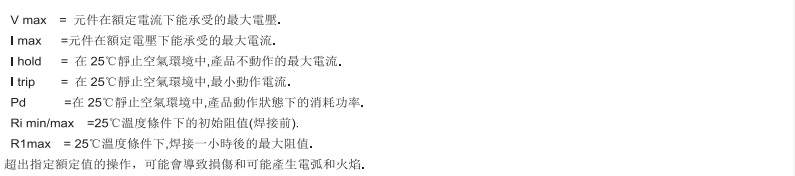

IH : Hold current: maximum current device will pass without interruption in 25°C still air.
IT : Trip current: minimum current that will switch the device from low resistance to high resistance in 25°C still air.
VMAX : Maximum continuous voltage device can withstand without damage at rated current.
IMAX : Maximum fault current device can withstand without damage at rated voltage.
Pb : Power dissipated from device when in the tripped state in 25°C still air.
RMIN : Minimum resistance of device as supplied at 25°C unless otherwise specified.
R1MAX : Maximum resistance measured one hour post-trip or post-reflow at 25°C.
* Maximum resistance is measured 1 hour after reflow.
**Ambient operating temperature:-40℃~85℃
Caution：Operation beyond the specified ratings may result in damage and possible arcing and flame.
