0603 系列

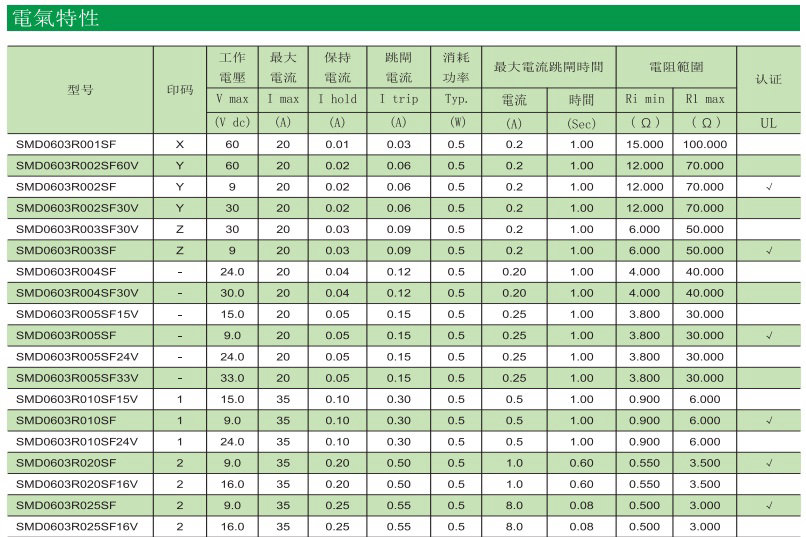

电气特性（25℃）
型号 | 印码 | 工作電压 | 最大电流 | 保持电流 | 跳闸电流 | 消耗功率 | 最大电流跳闸时间 | 电阻范围 | 认证 | |||
V max | I max | I hold | I trip | Pd | 电流 | 时间 | Ri min | R1 max | UL | |||
(V dc) | (A) | (A) | (A) | (W) | (A) | (Sec) | (Ω) | (Ω) | ||||
SMD0603R001SF | X | 60 | 20 | 0.01 | 0.03 | 0.5 | 0.2 | 1.00 | 15.000 | 100.000 | ||
SMD0603R002SF60V | Y | 60 | 20 | 0.02 | 0.06 | 0.5 | 0.2 | 1.00 | 12.000 | 70.000 | ||
SMD0603R002SF | Y | 9 | 20 | 0.02 | 0.06 | 0.5 | 0.2 | 1.00 | 12.000 | 70.000 | √ | |
SMD0603R002SF30V | Y | 30 | 20 | 0.02 | 0.06 | 0.5 | 0.2 | 1.00 | 12.000 | 70.000 | ||
SMD0603R003SF30V | Z | 30 | 20 | 0.03 | 0.09 | 0.5 | 0.2 | 1.00 | 6.000 | 50.000 | ||
SMD0603R003SF | Z | 9 | 20 | 0.03 | 0.09 | 0.5 | 0.2 | 1.00 | 6.000 | 50.000 | √ | |
SMD0603R004SF | - | 24.0 | 20 | 0.04 | 0.12 | 0.5 | 0.20 | 1.00 | 4.000 | 40.000 | ||
SMD0603R004SF30V | - | 30.0 | 20 | 0.04 | 0.12 | 0.5 | 0.20 | 1.00 | 4.000 | 40.000 | ||
SMD0603R005SF15V | - | 15.0 | 20 | 0.05 | 0.15 | 0.5 | 0.25 | 1.00 | 3.800 | 30.000 | ||
SMD0603R005SF | - | 9.0 | 20 | 0.05 | 0.15 | 0.5 | 0.25 | 1.00 | 3.800 | 30.000 | √ | |
SMD0603R005SF24V | - | 24.0 | 20 | 0.05 | 0.15 | 0.5 | 0.25 | 1.00 | 3.800 | 30.000 | ||
SMD0603R005SF33V | - | 33.0 | 20 | 0.05 | 0.15 | 0.5 | 0.25 | 1.00 | 3.800 | 30.000 | ||
SMD0603R010SF15V | 1 | 15.0 | 35 | 0.10 | 0.30 | 0.5 | 0.5 | 1.00 | 0.900 | 6.000 | ||
SMD0603R010SF | 1 | 9.0 | 35 | 0.10 | 0.30 | 0.5 | 0.5 | 1.00 | 0.900 | 6.000 | √ | |
SMD0603R010SF24V | 1 | 24.0 | 35 | 0.10 | 0.30 | 0.5 | 0.5 | 1.00 | 0.900 | 6.000 | ||
SMD0603R010SF33V | 1 | 33.0 | 35 | 0.10 | 0.30 | 0.5 | 0.5 | 1.00 | 0.900 | 6.000 | ||
SMD0603R020SF | 2 | 9.0 | 35 | 0.20 | 0.50 | 0.5 | 1.0 | 0.60 | 0.550 | 3.500 | √ | |
SMD0603R020SF16V | 2 | 16.0 | 35 | 0.20 | 0.50 | 0.5 | 1.0 | 0.60 | 0.550 | 3.500 | ||
SMD0603R025SF | 2 | 9.0 | 35 | 0.25 | 0.55 | 0.5 | 8.0 | 0.08 | 0.500 | 3.000 | √ | |
SMD0603R025SF16V | 2 | 16.0 | 35 | 0.25 | 0.55 | 0.5 | 8.0 | 0.08 | 0.500 | 3.000 | ||

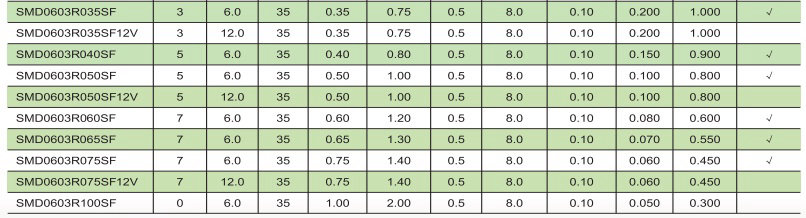

SMD0603R035SF | 3 | 6.0 | 35 | 0.35 | 0.75 | 0.5 | 8.0 | 0.10 | 0.200 | 1.000 | √ | |
SMD0603R035SF12V | 3 | 12.0 | 35 | 0.35 | 0.75 | 0.5 | 8.0 | 0.10 | 0.200 | 1.000 | ||
SMD0603R040SF | 5 | 6.0 | 35 | 0.40 | 0.80 | 0.5 | 8.0 | 0.10 | 0.150 | 0.900 | √ | |
SMD0603R050SF | 5 | 6.0 | 35 | 0.50 | 1.00 | 0.5 | 8.0 | 0.10 | 0.100 | 0.800 | √ | |
SMD0603R050SF12V | 5 | 12.0 | 35 | 0.50 | 1.00 | 0.5 | 8.0 | 0.10 | 0.100 | 0.800 | ||
SMD0603R060SF | 7 | 6.0 | 35 | 0.60 | 1.20 | 0.5 | 8.0 | 0.10 | 0.080 | 0.600 | √ | |
SMD0603R065SF | 7 | 6.0 | 35 | 0.65 | 1.30 | 0.5 | 8.0 | 0.10 | 0.070 | 0.550 | √ | |
SMD0603R075SF | 7 | 6.0 | 35 | 0.75 | 1.40 | 0.5 | 8.0 | 0.10 | 0.060 | 0.450 | √ | |
SMD0603R075SF12V | 7 | 12.0 | 35 | 0.75 | 1.40 | 0.5 | 8.0 | 0.10 | 0.060 | 0.450 | ||
SMD0603R100SF | 0 | 6.0 | 35 | 1.00 | 2.00 | 0.5 | 8.0 | 0.10 | 0.050 | 0.300 | ||

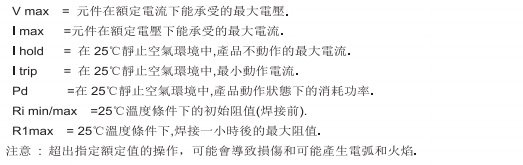

V max = Maximum operating voltage device can withstand without damage at rated current (Imax).
I max = Maximum fault current device can withstand without damage at rated voltage (V max).
I hold = Hold Current. Maximum current device will not trip in 25°C still air.
I trip = Trip Current. Minimum current at which the device will always trip in 25°C still air.
Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage.
Ri min/max = Minimum/Maximum device resistance prior to tripping at 25°C.
R1max = Maximum device resistance is measured one hour post reflow.
CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame.
